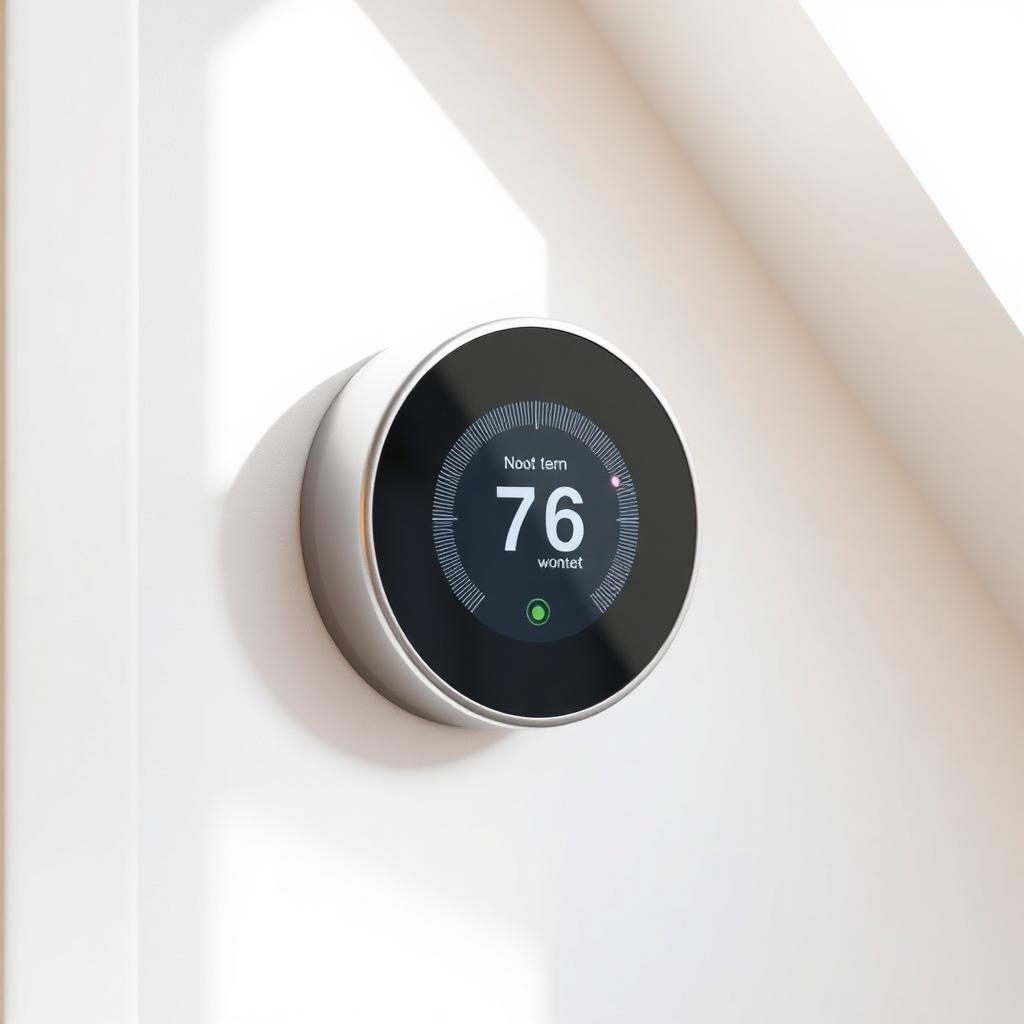

How Do I Install a Smart Thermostat?

Quick Answer

Turn off the HVAC breaker, label every wire as you remove the old thermostat, photograph the old terminal block, mount the new base plate, connect each wire to the matching terminal letter on the new unit, snap the display on, restore power, and complete the in app setup.

Most installs take 30 to 60 minutes. The one decision that trips up DIYers is the C wire. Modern smart thermostats need a constant low voltage power feed; if your existing wiring does not include a C wire, you will need either a power adapter, a C wire kit, or a professional retrofit.

Electrical safety disclaimer: if you have line voltage baseboard heating (120 or 240 volts rather than 24 volt low voltage), do not attempt this install. Call a licensed electrician.

Will a smart thermostat actually save you money?

Studies from the US Department of Energy and major utilities consistently show 8 to 15 percent savings on heating and cooling bills when smart thermostats are used with proper schedules. The savings come from three places: setting back temperature when no one is home, learning your daily routine, and avoiding the over conditioning that happens with manual non programmable thermostats.

Payback period at typical US energy prices is 18 to 36 months for the device itself.

Step 1: Check compatibility before you buy

• System type: most smart thermostats support standard gas, electric, oil, heat pump, and 1 or 2 stage systems.
• Voltage: low voltage (24 V) only. If you see thick black wires with wire nuts, that is line voltage and is not compatible.
• C wire: Nest 3rd gen and Ecobee Premium can sometimes run without a C wire on simple systems; Nest Thermostat (the budget model) and Honeywell T9 strongly recommend one. The Ecobee includes a Power Extender Kit (PEK) in the box for installs without a C wire.

Every manufacturer hosts a free compatibility checker. Take a photo of your current wiring, upload it, and the tool confirms before you spend money.

Step 2: Tools and supplies

• Phillips and flathead screwdrivers.
• Small needle nose pliers.
• Wire strippers.
• Painter s tape and a pen for labelling wires.
• Smartphone with full battery for taking wiring photos and running the app.
• Drywall anchors and a small drill bit (often included with the thermostat).
• Optional: a non contact voltage tester to confirm the power is off.

Step 3: Cut the power

1. Open your breaker panel and switch off the breaker labelled Furnace, Air Handler, or HVAC.
2. If unlabelled, switch off the main breaker.
3. Walk back to the thermostat. Try to change the temperature. If the display does not respond, power is off. Use a voltage tester at the terminals to be absolutely sure.

Step 4: Remove the old thermostat

1. Pull or unscrew the front faceplate off the wall base.
2. Take a clear photo of the wired base. This is your insurance if anything goes wrong.
3. Use painter s tape to label each wire with the letter on the terminal it is currently in (R, RH, RC, G, W, Y, C, etc).
4. Loosen each terminal screw and gently free the wires.
5. Tape the bundle of wires to the wall so they do not slip back into the cavity.
6. Unscrew the old base from the wall.

Step 5: Decode the wiring colours

Standard 24 volt HVAC wiring follows widely used conventions, though installers occasionally deviate. Always trust the letter on the terminal, not the wire colour.

• R or RC or RH (red): 24 V power supply from the transformer.
• G (green): indoor fan relay.
• W or W1 (white): primary heat call.
• Y or Y1 (yellow): primary cooling compressor.
• C (blue or black): common return wire that provides constant power to the smart thermostat.
• O or B (orange or dark blue): heat pump reversing valve.
• W2, Y2: second stage heating or cooling.

Step 6: Mount the new base

1. Feed the wires through the centre opening of the new base plate.
2. Hold the base against the wall and use a small level to make sure it is straight.
3. Mark the screw holes, drill pilot holes if needed, insert any included drywall anchors, and screw the base into place.

Step 7: Connect the wires

1. Refer to your labels and photo. Insert each wire into the terminal of the matching letter on the new base.
2. For lever style terminals, press the lever, push the wire fully in, and release.
3. For screw style terminals, loosen the screw, hook the wire under it, and tighten.
4. If you have no C wire, install the Power Extender Kit at the air handler (Ecobee) or follow the manufacturer s no C wire wiring diagram.

Step 8: Attach the display and restore power

1. Snap or screw the display unit onto the base. Most modern models click into place magnetically.
2. Walk back to the breaker panel and switch the HVAC breaker back on.
3. The display should light up. Most units start with a guided setup screen.

Step 9: Run the in app setup

1. Download the manufacturer app (Google Home for Nest, Ecobee for Ecobee, Honeywell Home for Honeywell).
2. Create or sign in to your account.
3. Pair the thermostat over Wi Fi.
4. Configure your equipment type, fuel source, and the basic schedule.
5. Test heating and cooling for at least one full cycle each before considering the install complete.

Troubleshooting

• Display does not power on: double check the breaker, verify the wires are fully seated, and confirm you have either a C wire or an adapter installed.
• Heating runs continuously: the W wire is likely in the wrong terminal. Power down and re check.
• Cooling does not start: the Y wire may be loose, or the outdoor unit breaker is off.
• Wi Fi will not connect: verify your home network is 2.4 GHz (most thermostats do not support 5 GHz only networks).

FAQs

Do I really need a C wire?

For most modern smart thermostats, yes. The display, Wi Fi radio, and sensors need constant power. Battery only operation drains rechargeable cells fast and can cause Wi Fi dropouts.

What if my house has only two wires?

A two wire system (R and W) is typical for older heat only setups. Most smart thermostats are not compatible with two wire systems out of the box. Honeywell s T6 Pro and Mysa make models that work, or an electrician can run extra wires.

Will a smart thermostat work with my heat pump?

Yes, but heat pump configuration requires the O or B wire to be set correctly. Read the install guide carefully and pick the correct heat pump mode in the app.

Do I need professional installation?

Not for low voltage systems with a C wire. For complex zoned systems, dual fuel setups, or any line voltage system, hire a licensed HVAC technician.

The takeaway

Cut the power, label the wires, match each wire to the same letter on the new terminal, and run the in app setup. The C wire is the one factor that decides whether your install is a one hour swap or a multi step project. Confirm it before you buy.
